AGFRC Brushless 100KG (1390 oz) Billet Servo - A280BHLW
AGFRC 100KG Mega Torque 2S LiPo IP67 Waterproof 0.110Sec Programmable Steel Gears Brushless Digital Servo for 1/5 Giant Scale RC Models (A280BHLW)
This is the all-torque no compromise servo of choice for heavy 4WD builds and the Primal RC Raminator. Built with the same architecture as the A280BHMW 78kg servo this model favors torque over speed with a monster 100kg (1390 oz) powered by common 2S LiPo.
Housed in the all metal CNC machined case is a full steel gear drivetrain supported with five ball bearings for durability and precision. The IP67 rated waterproofing means that all elements can be tackled. Further customization to your system can be completed with the AGFRC SPV3 Servo Programmer.

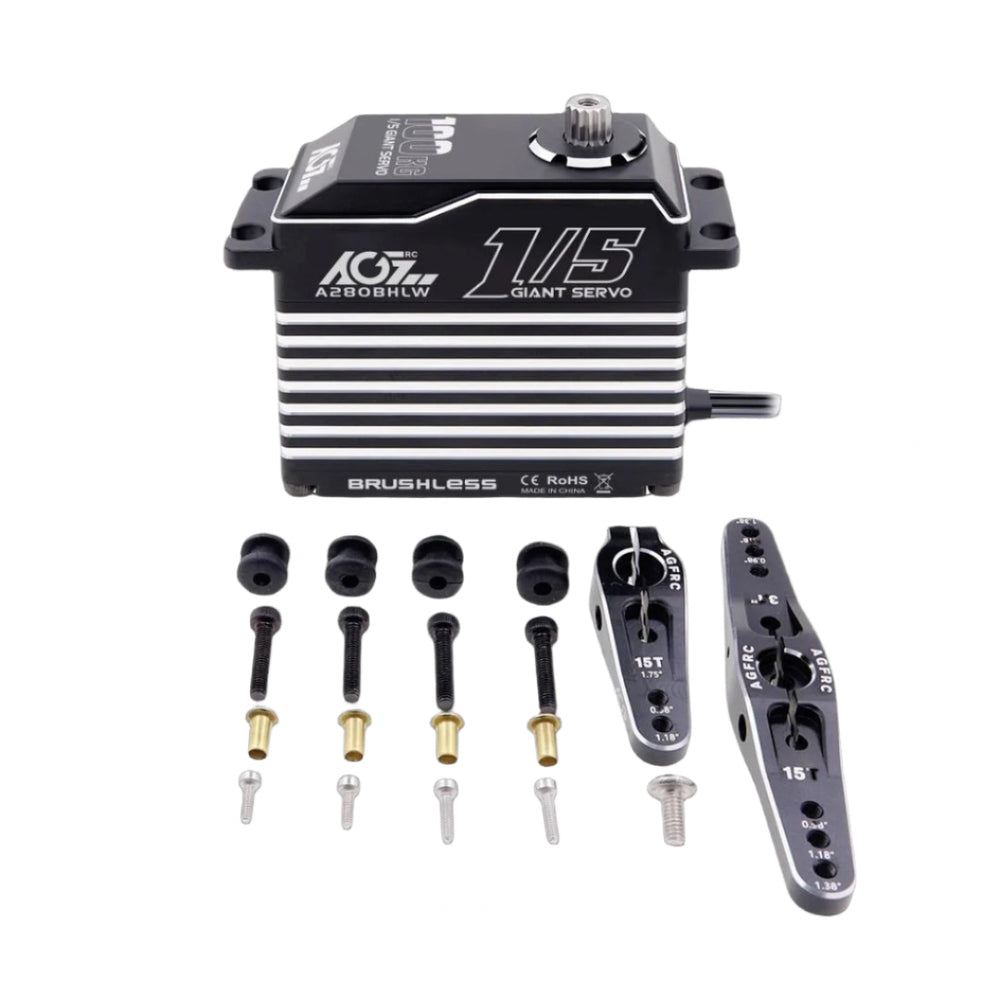

Included are two 7075 billet servo horns; a single sided and double sided make this ready to fit in your favorite 1/5 models. With a similar footprint to other large scale servos this is a direct fit to your favorite cars from Kraken, Losi, MCD, Rovan/KM and more.
View Kevin Talbot on YouTube testing these servos in his electric converted Raminator here:
AGFRC Servos are industry leading performers which makes them a popular choice for OEM sourcing. Skip the markup and get the best servos at the best price.
check_circle In Stock

AGFRC Brushless 100KG (1390 oz) Billet Servo - A280BHLW
star
Features
expand_more
- Full CNC Heat Sink Aluminum Case
- IP67 Waterproof Rating
- Extremely Strong Steel Gears
- Super Reliable Five Ball Bearing design
- 2S Lipo High Voltage Compatible
- Includes Two 15T 7075 Grade Aluminum Servo Horns. (Singe & Double sided)
- Bluetooth APP Programmable (Available Soon)
straighten
Specifications
expand_more
- Item name: A280BHLW
- Operating Voltage: 4.8-8.4V
- Operating speed: 0.180 sec/60° @ 4.8V
- Operating speed: 0.150 sec/60° @ 6.0V
- Operating speed: 0.125 sec/60° @ 7.4V
- Operating speed: 0.110 sec/60° @ 8.4V
- Stall Torque: 53 kg-cm (736 oz-in) @ 4.8V
- Stall Torque: 76 kg-cm (1056 oz-in) @ 6.0V
- Stall Torque: 90 kg-cm (1251 oz-in) @ 7.4V
- Stall Torque: 100 kg-cm (1390 oz-in) @ 8.4V
- Gear: Steel
- Motor: Brushless
- Size: 65.8*30.0*59.0mm(2.59 x 1.18 x 2.32 in)
- Weight: 284.8g
- Connector Wire: TYU 300mm / 22AWG
notification_important
Suggested Companion Items
expand_more
- Taylor RC Billet Servo Mounts
- Replacement AGFRC Hardware
- AGFRC 100KG A280BHLW Servo
