Taylor VESLA HD Hardened Steel Dog Bone Kit - Enclosed Cup Design

Extremely Heavy Duty Kraken VESLA CNC Machined Heat Treated Steel Dog Bone Kit to replace the stock CVD style system

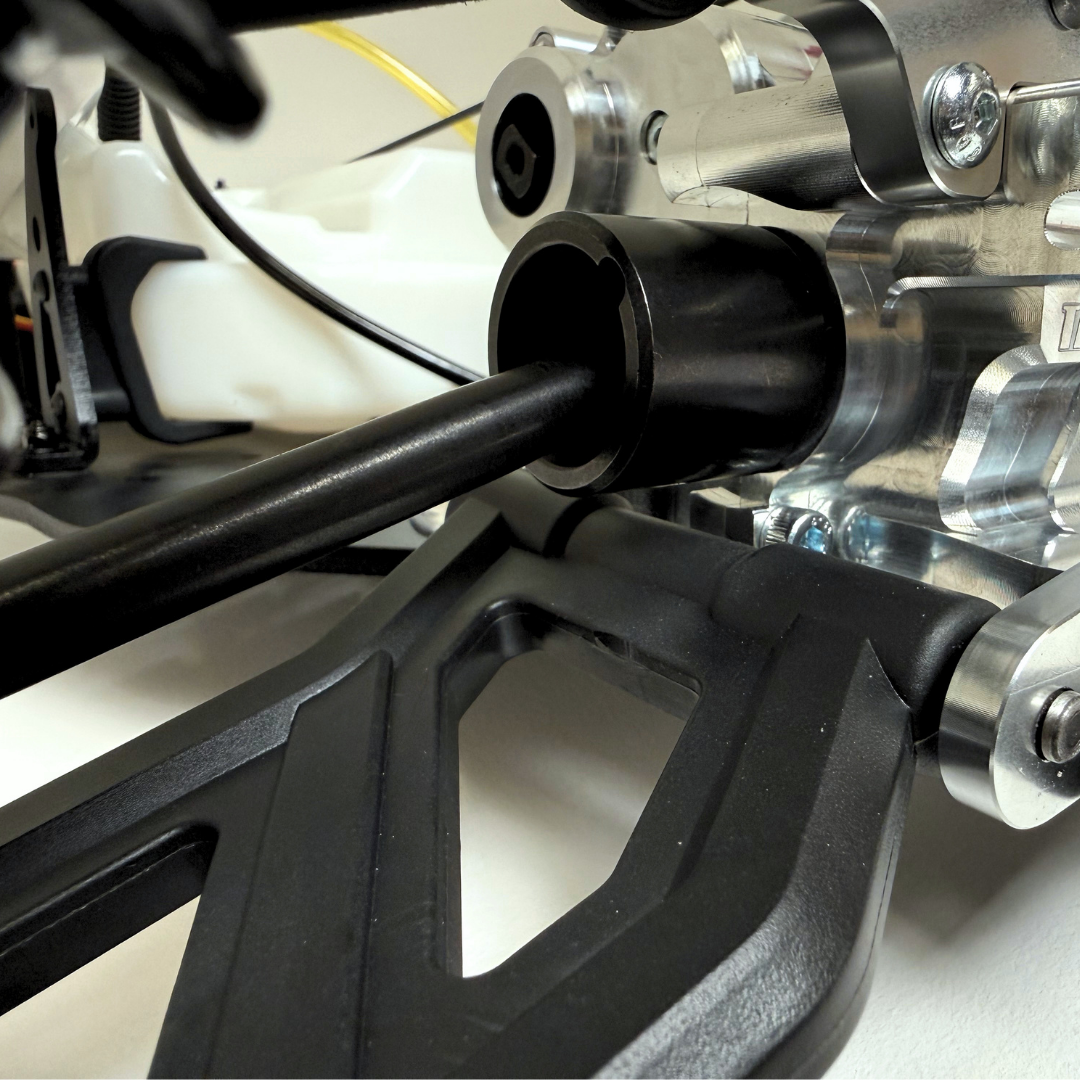

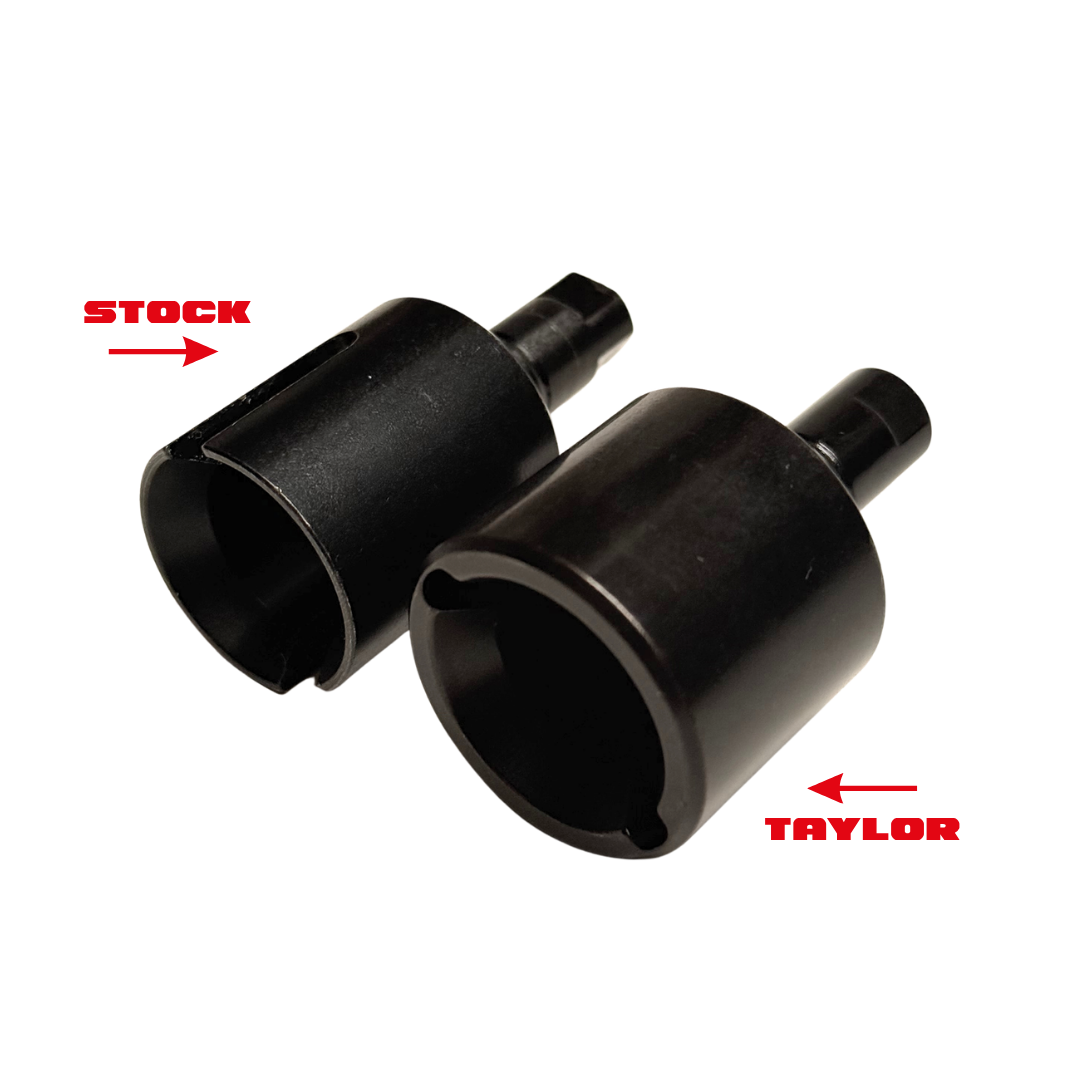

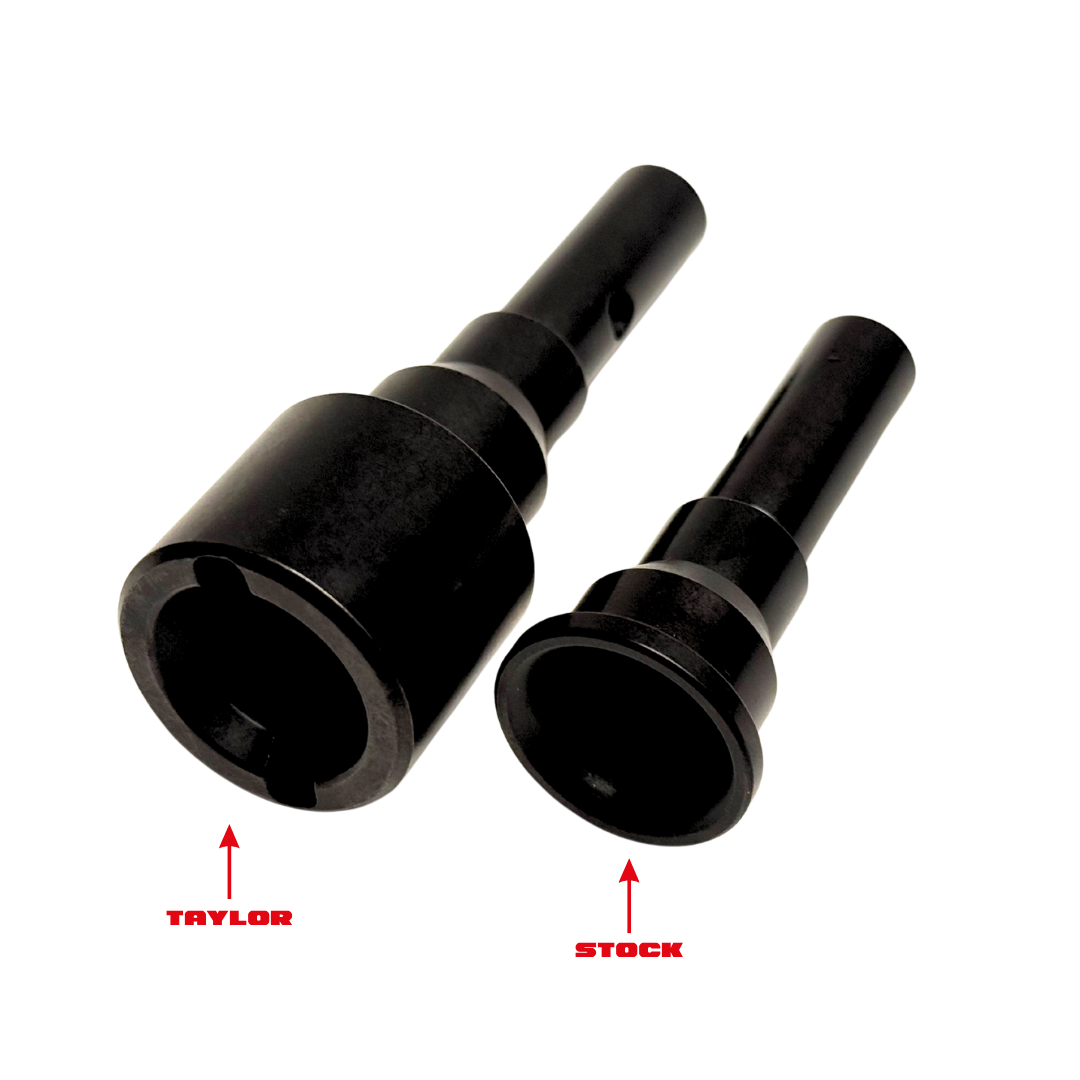

This upgrade requires you to use the Taylor RC 3PC HD VESLA Transmission housing due the oversized output cups. The cups are large in size and will not fit through the stock VESLA transmission housing (or optional kraken vesla transmissions)

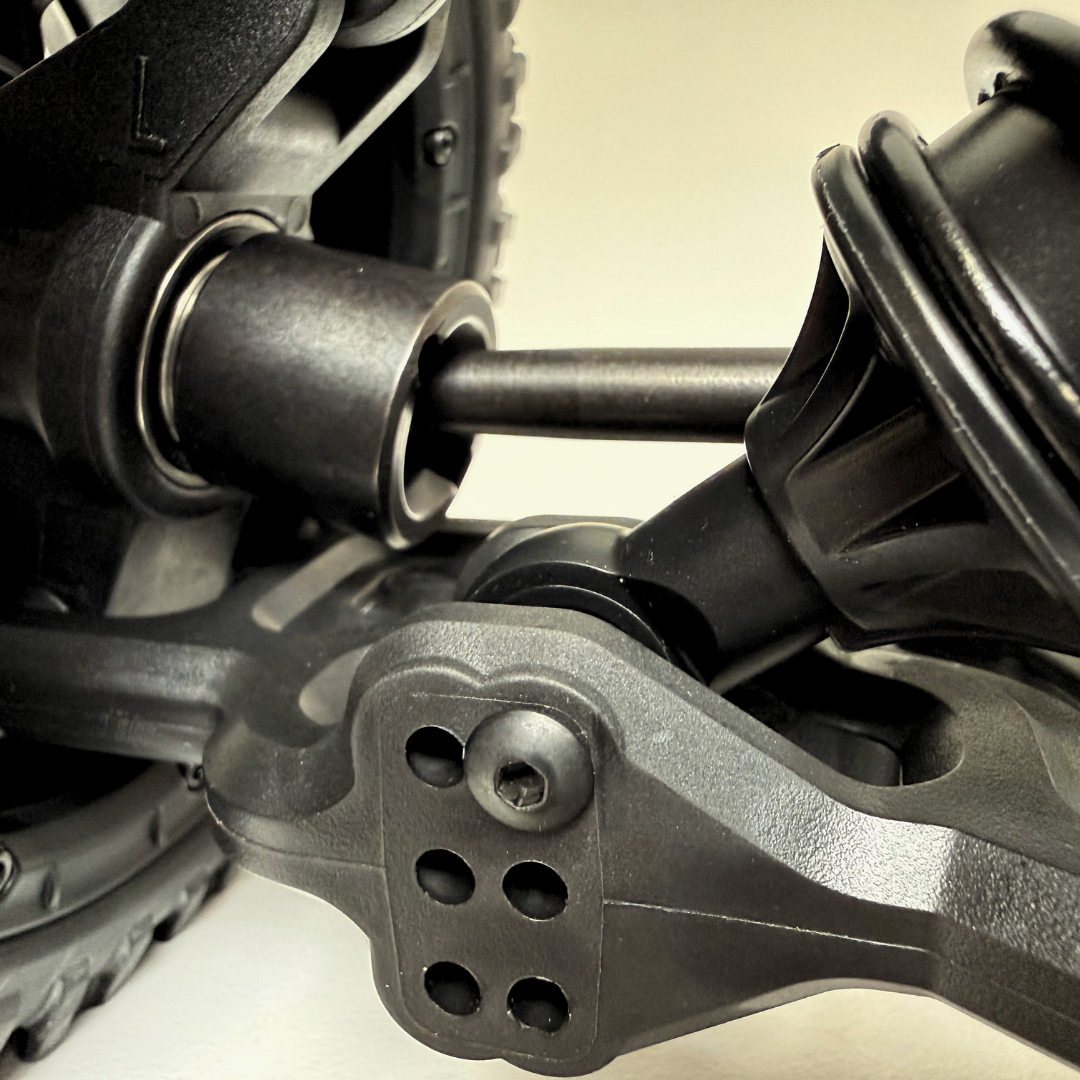

These new HD dogbones a Taylor RC Hardened Steel 5x26mm Dog Bone Pins both sides instead of the 4mm pin found on the stock CVD style Bones. A smooth action floating pin design is used due to the solid enclosed design diff cups and stub axles.

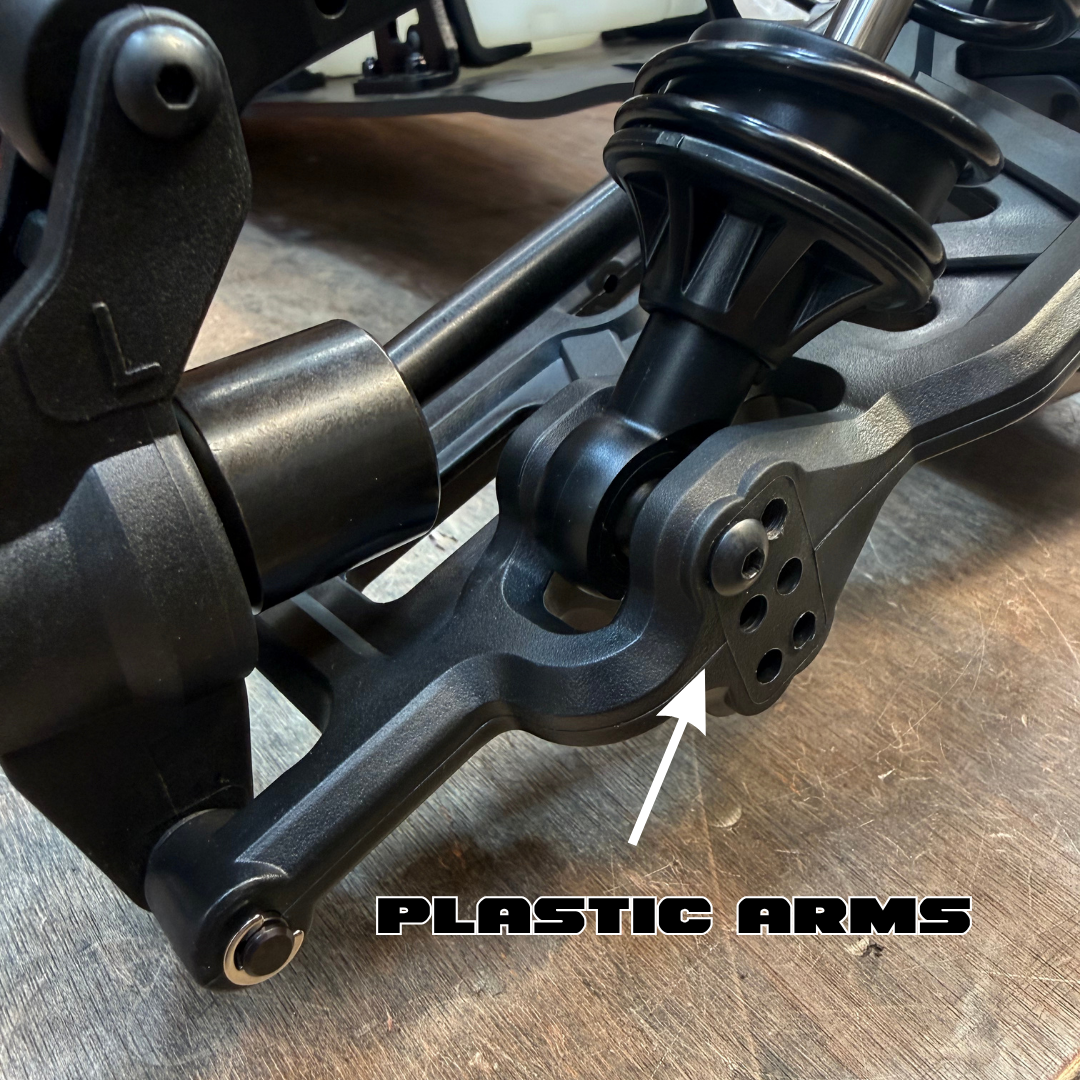

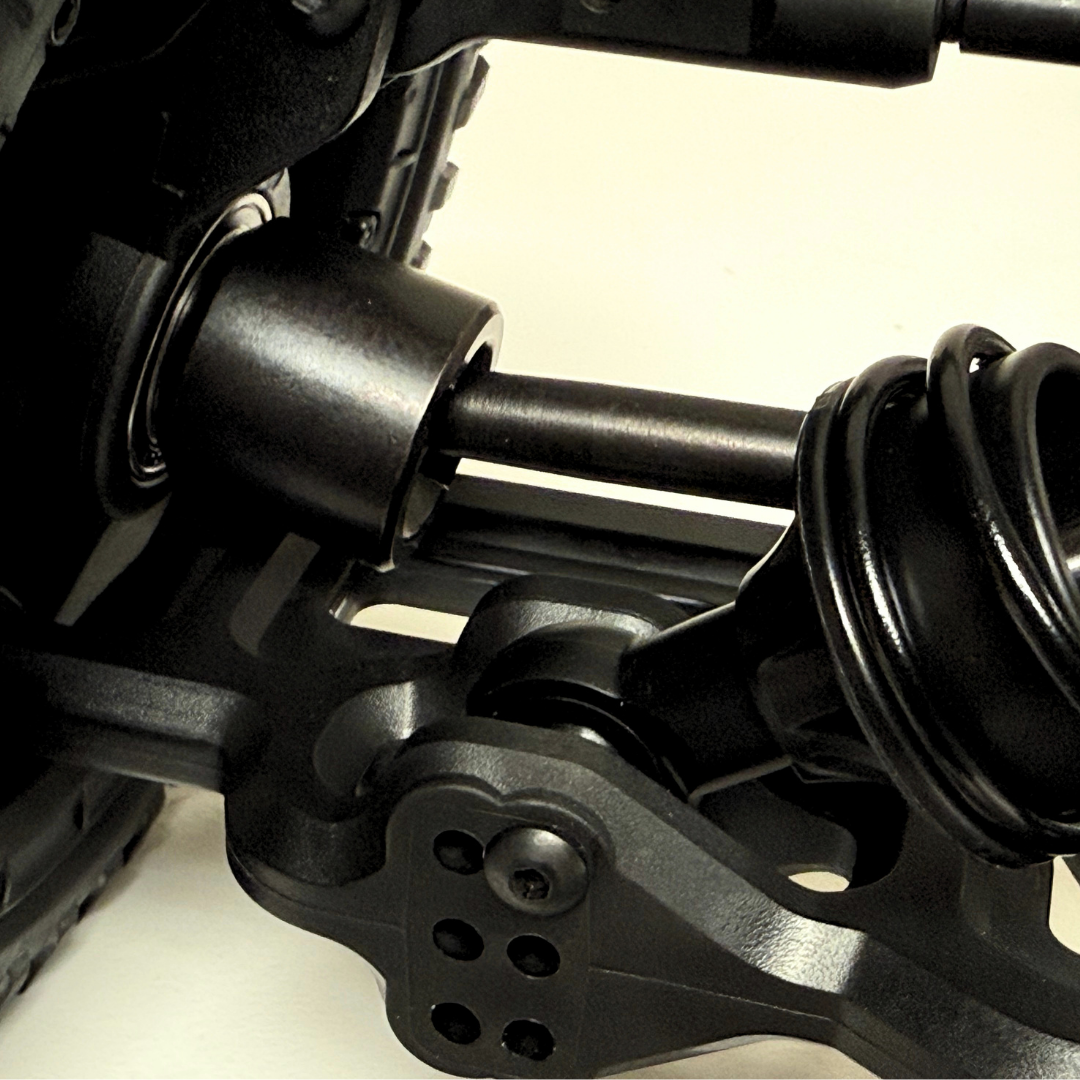

Please note, due to the large cup diameter and long pin length, customers using the stock plastic arms (slightly shorter ones) will need to move their bottom shock bolt out to the hole marked in last photo. This just removes the chance of the pin bottoming out on full droop as the vesla has an insane amount of suspension travel!

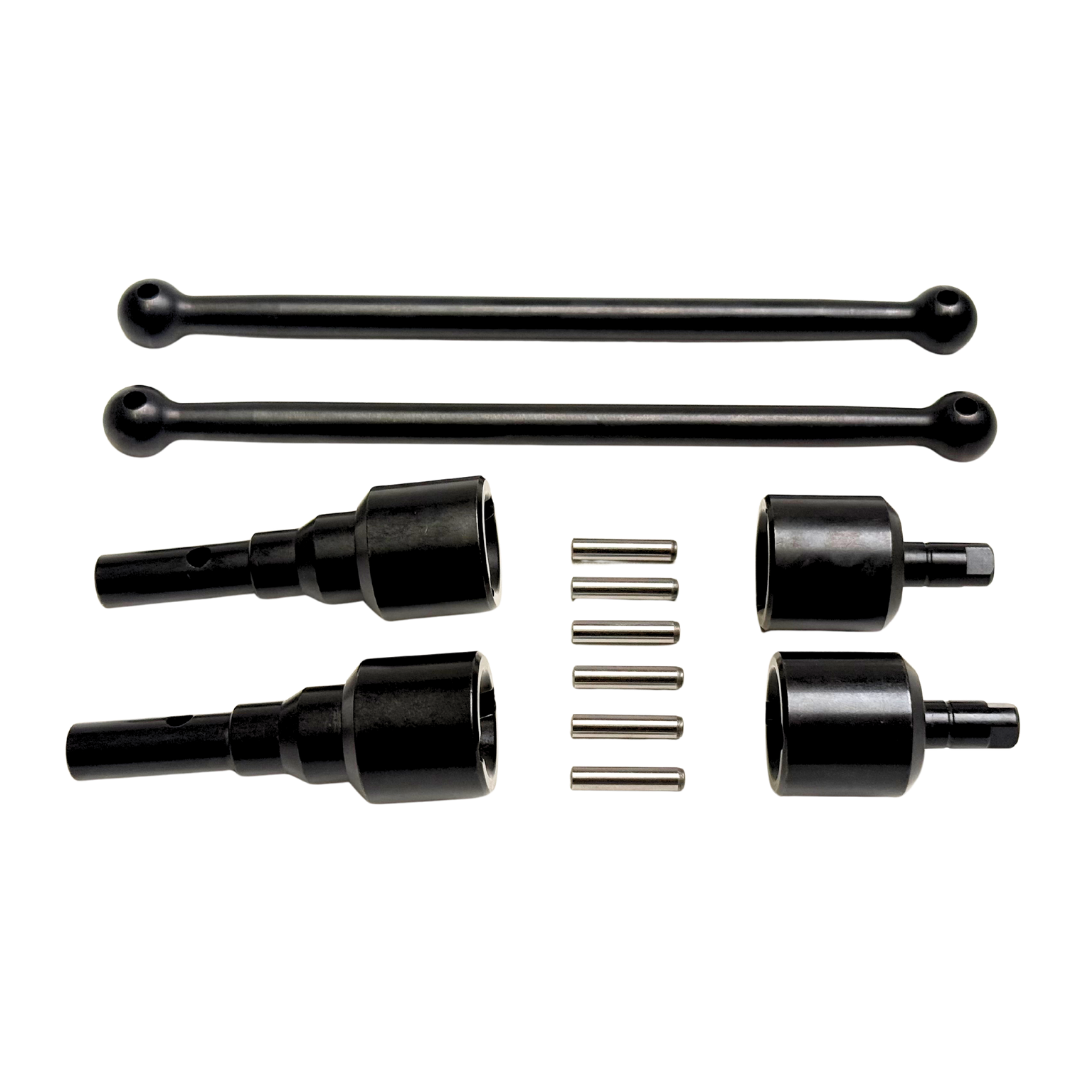

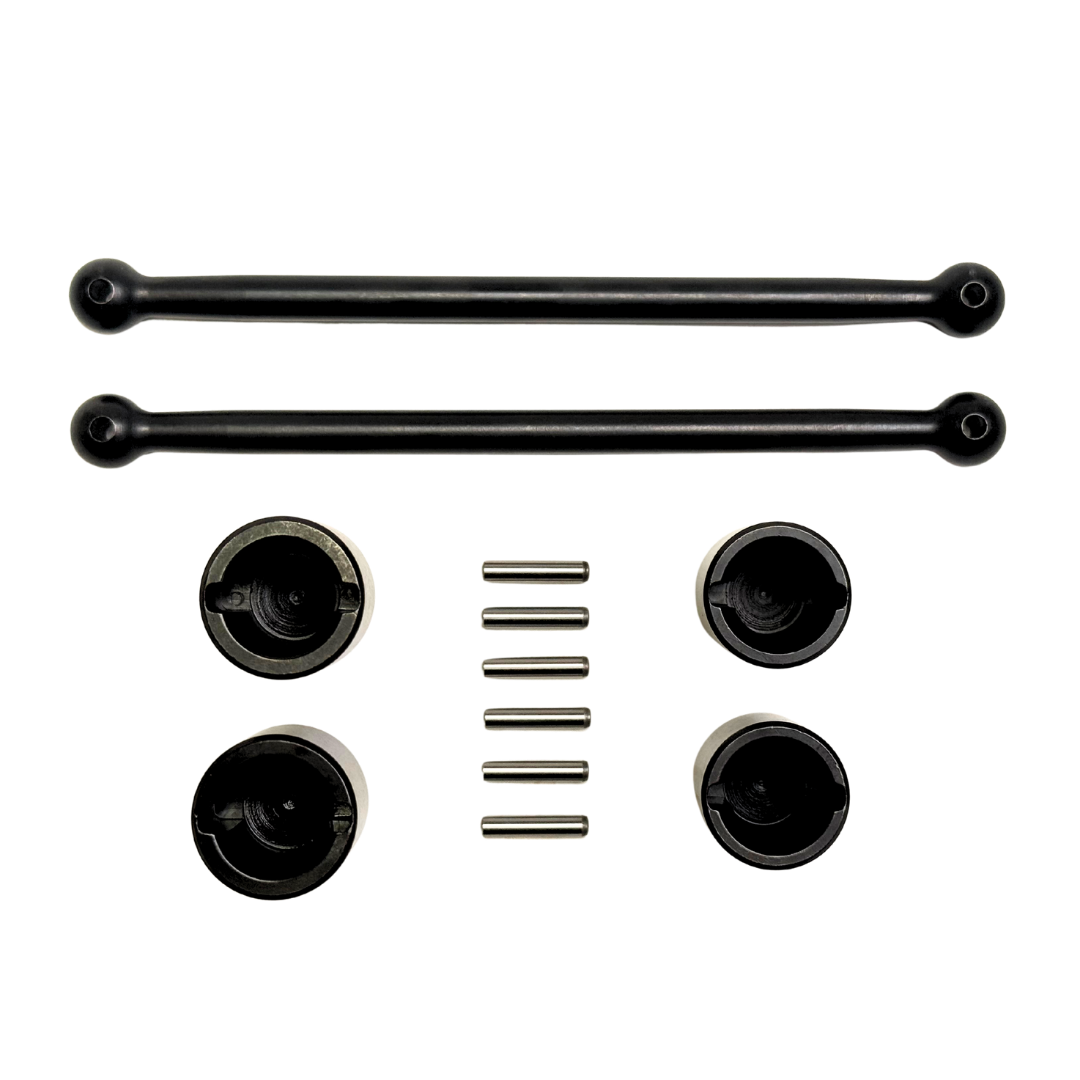

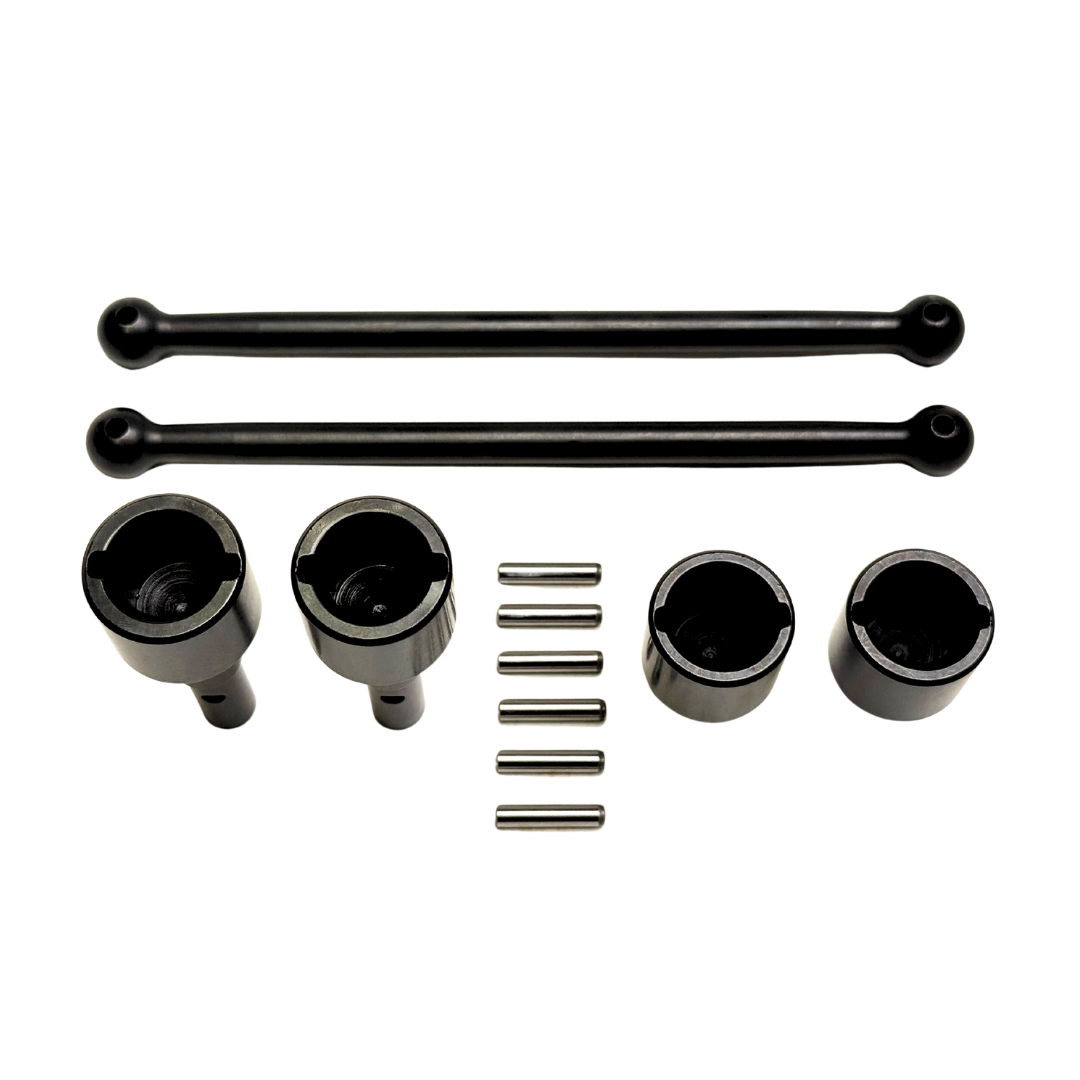

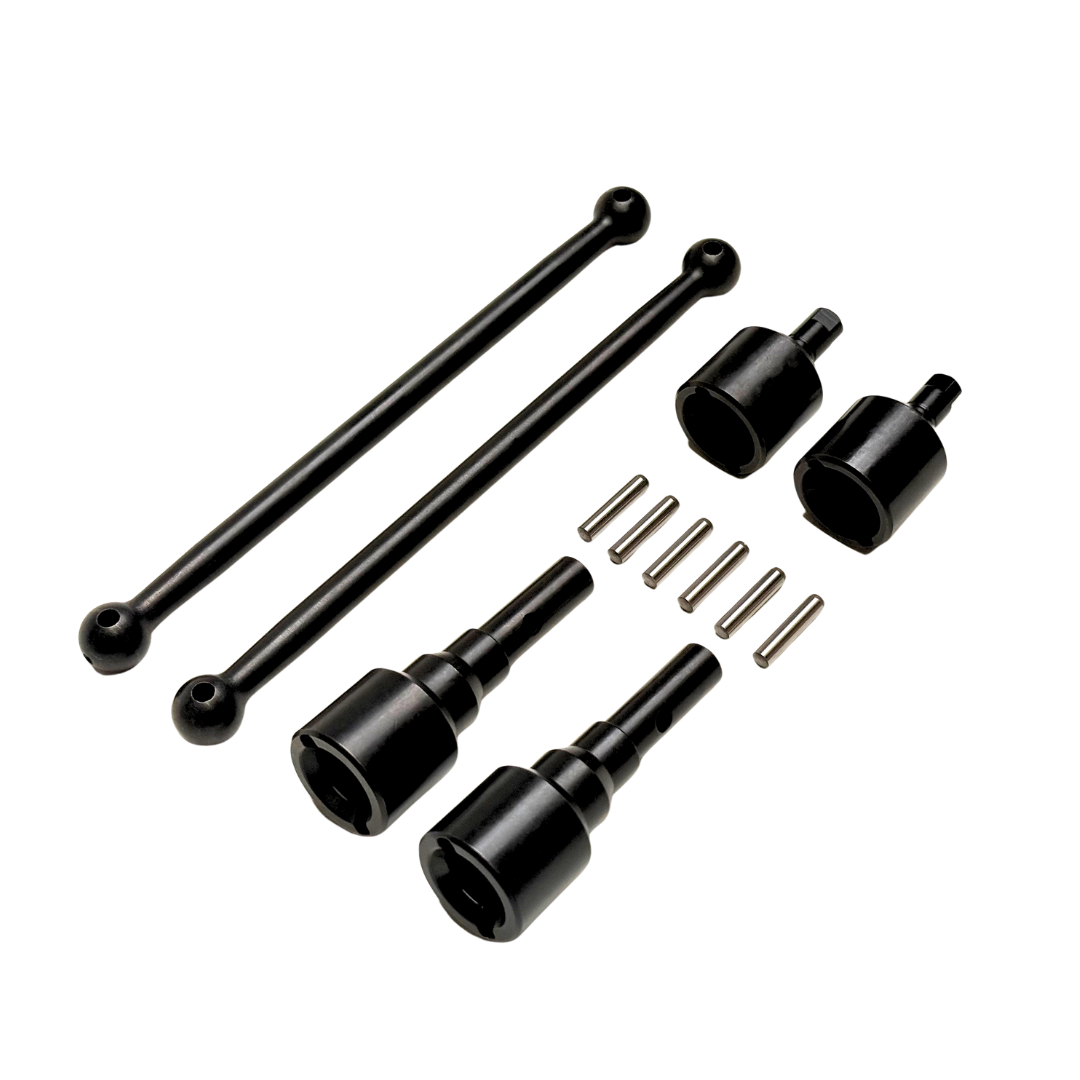

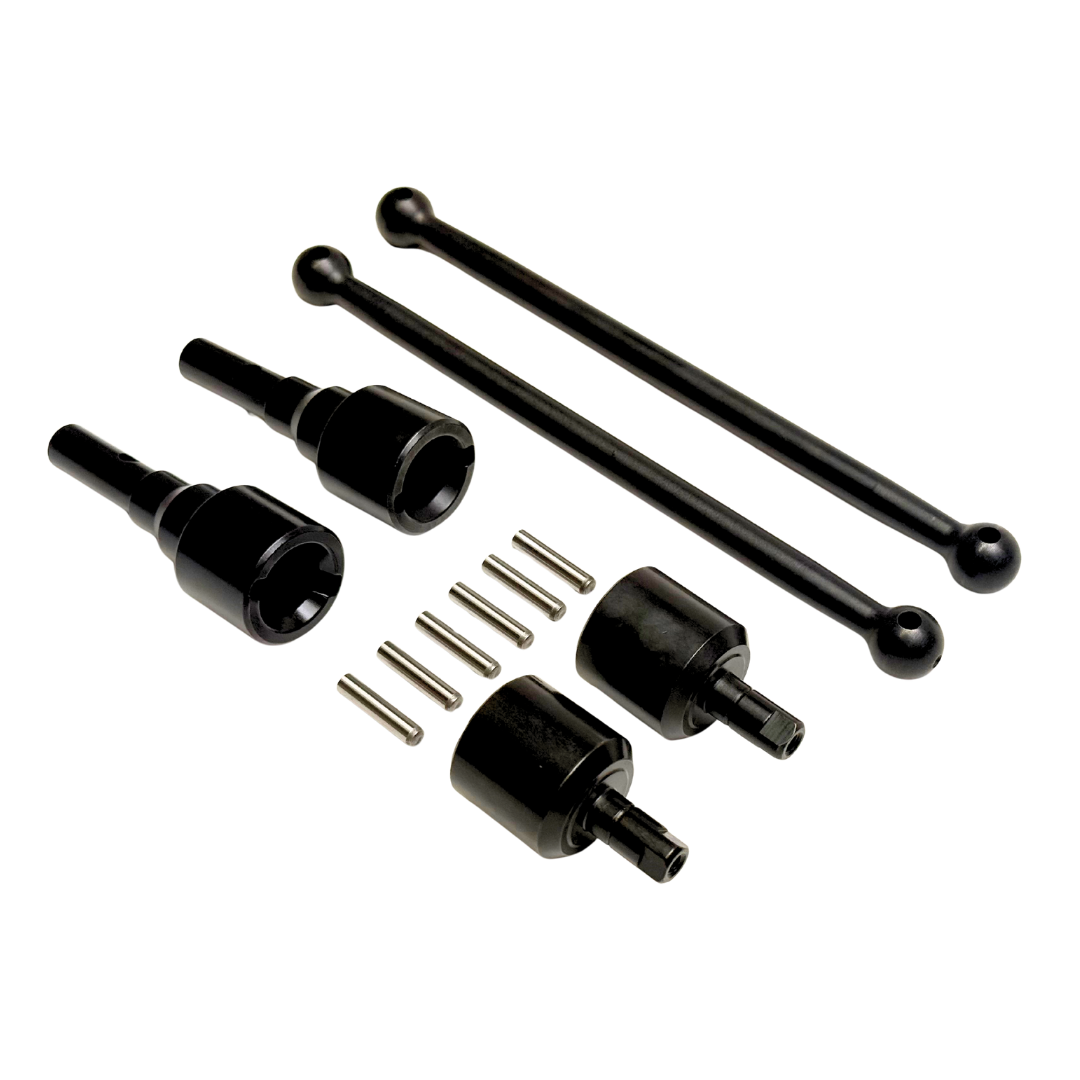

This set includes 2x Inner Enclosed Billet Cups, 4x HD Drive pins, 2x Dog Bones and 2x Outer Enclosed Billet Cups.
