MCD X-SNAP 2-Speed Transmision Kit HFL1426 - M270102X

MCD X-SNAP 2-Speed Transmission Kit HFL1426 - M270102X

X-Snap, our new two speed gearbox is available after a long development period. The gearbox allows you to reach higher speeds without compromising the torques at lower speed. Gives you better acceleration and in the same time higher top speed. Adjustable shift point provides the engagement speed for the second gear.
The gear is suitable for our on-road and off-road cars. The correct gear ratio selection must be made in order to use the gearbox. We recommend the ratios for the off-road first gear: 9,14 and for the second gear: 7,62. For the on-road first gear:7,62 and the second gear:6,44.

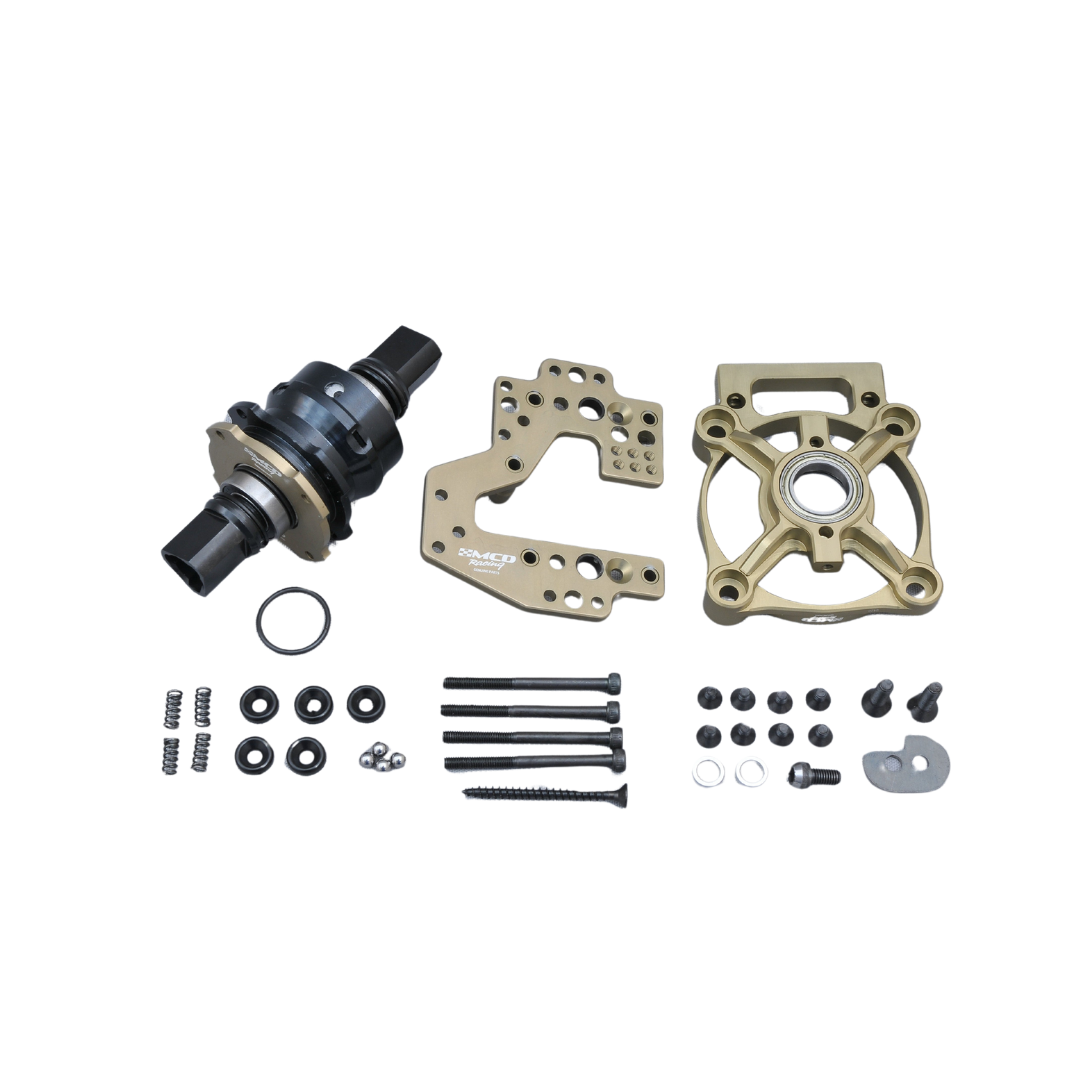

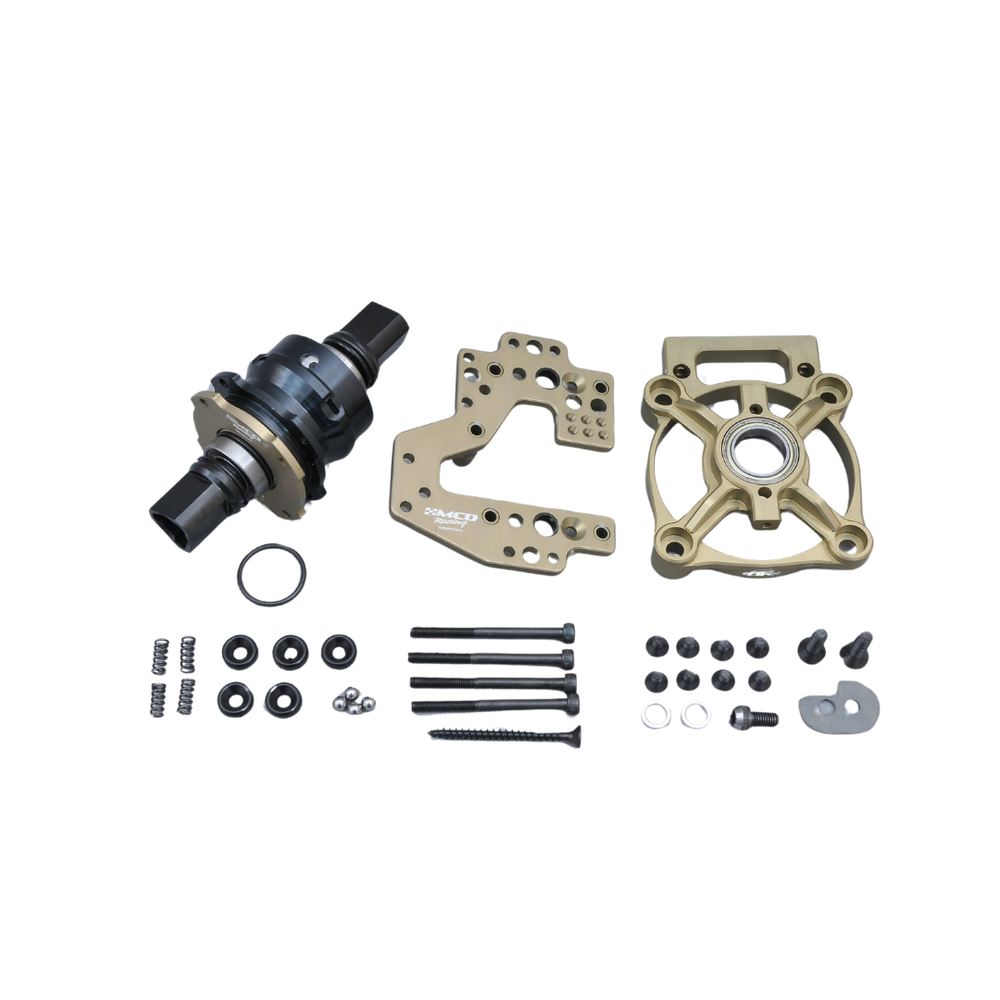

The X-Snap gearbox consists of 3 pieces that you need to order. First is the "Transmission Kit" (the main 270102X) which is factory assembled, the second is theÊ"Gear Pack" where you can select from off-road or on-road/rally gear sets. The third piece is the "Clutch Bell Pack" where you choose either the standard or the Pro-Bite Clutch bell. If you are using the X-Snap on an MCD Electric model you will need the motor shaft to X-Snap Adapter 910501S

To order a full set of gearbox the second and the third packs should be decided accordingly.
