The Design Concept

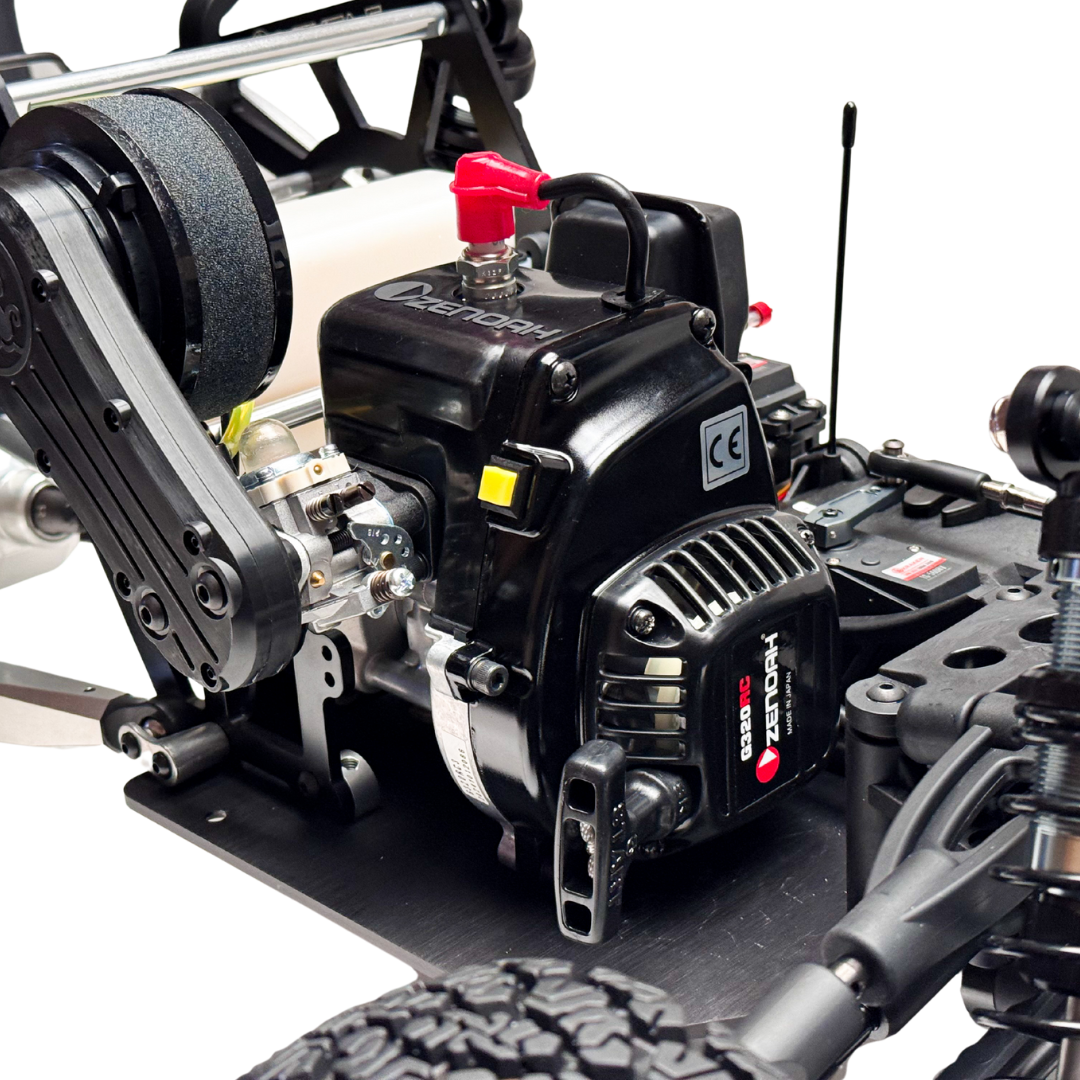

The vision behind the KV5 is to create a new platform that is completely unique. We believe we have achieved our vision with the VEKTA.5. It is BIG and BOLD with only one name to describe it - “THE BEAST”! The KV5 is an Independent Front Suspension and Rear Solid Axle design that brings real-world fun and excitement to the 1/5th scale RC world. The KV5 uses an “open design” in which everything can be easily accessed and removed with minimal fuss. Installing an engine for example only takes a matter of minutes.
We also understand that an RC is not an RC without exciting hop-ups. The VEKTA has proven to be extremely popular with top enthusiasts making each machine their own with a variety of custom parts from brands like Taylor RC, Vertigo Performance, Turtle Racing and more! We also offer a full range of factory upgrade parts to enhance the performance and strength of your VEKTA.5
Front Section
The Front section of the KV5 comprises of heavy duty nylon arms designed to absorb hard impacts. It is designed with Independent Front Suspensions and supported by our MEGA SHOCKS. Shocks are anchored on a massive 8mm thick CNC Shock Tower. The articulation of the A-Arms are supported by 8mm steel hinge pins. To absorb huge jumps, our MEGA SHOCKS are equipped with 38mm aluminum oil filled shock body and 8mm shock shafts. The front and rear drivelines are CVD style with 8mm drive shafts. An all metal differential is housed in a heavy duty Fiberglass Reinforced Nylon housing. The front arms allow camber adjustments for fine tuning.
Mid Section

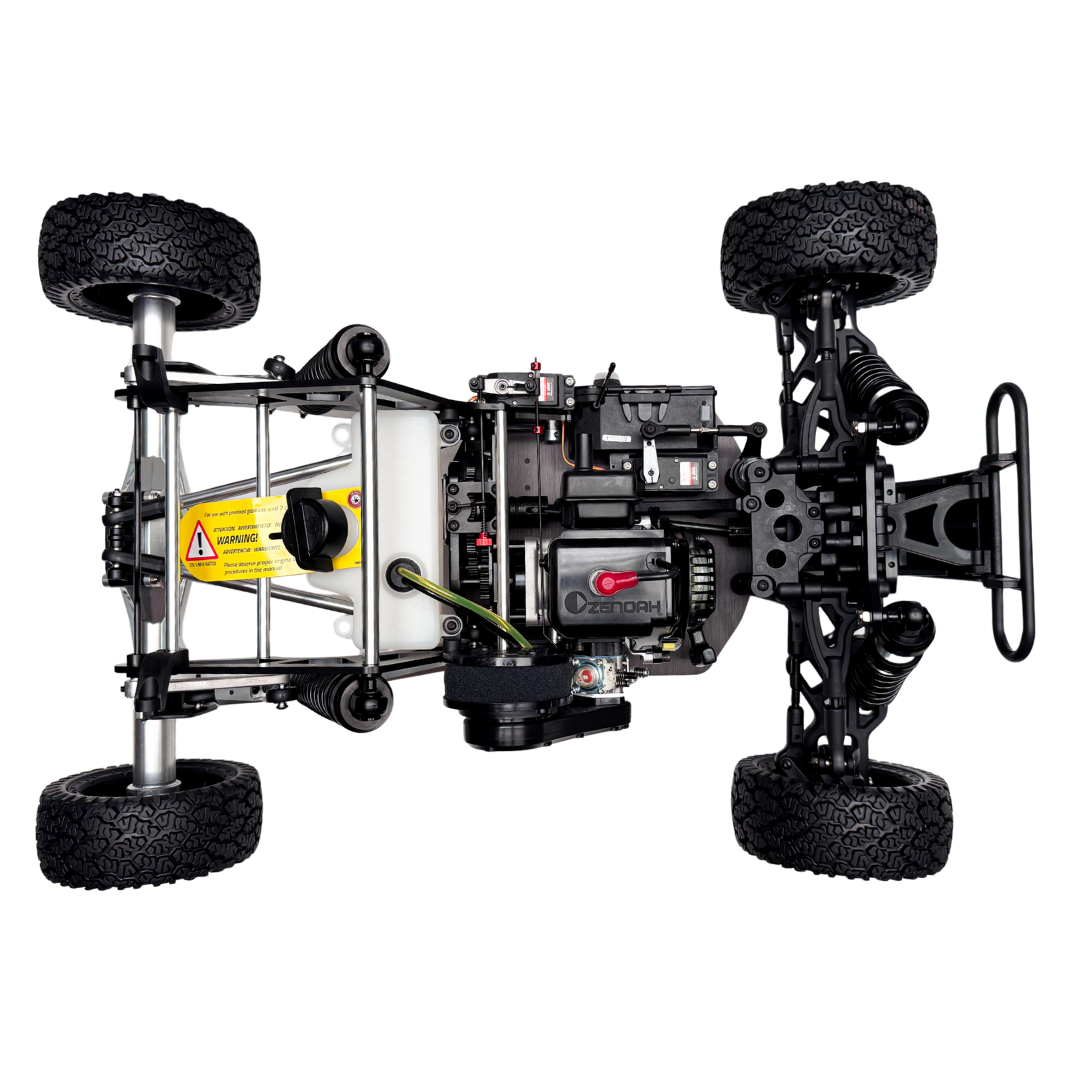

The main chassis is made out of a heavy duty 5mm aluminum plate. The front to mid section of the driveline is non CVD. This means that you can easily detach the entire front assembly with arms, shock tower, differentials etc. intact for quick maintenance or to replace the center dog bone quickly. The KV5 offers a unique plenum style air filter. It is essentially a filtered air chamber for an engine. There are many benefits to using a plenum style air filter. It enables the KV5 to achieve a slimmer chassis design.
An all metal transmission rests in the center of the VEKTA.5 All CNC metal gears are Heavy duty and encased in a cast aluminum multi piece housing. The direct drive spur gear commands all power to the front and rear differentials. The aluminum transmission plates house rubber sealed ball bearings to keep things spinning true and free.
Rear Section

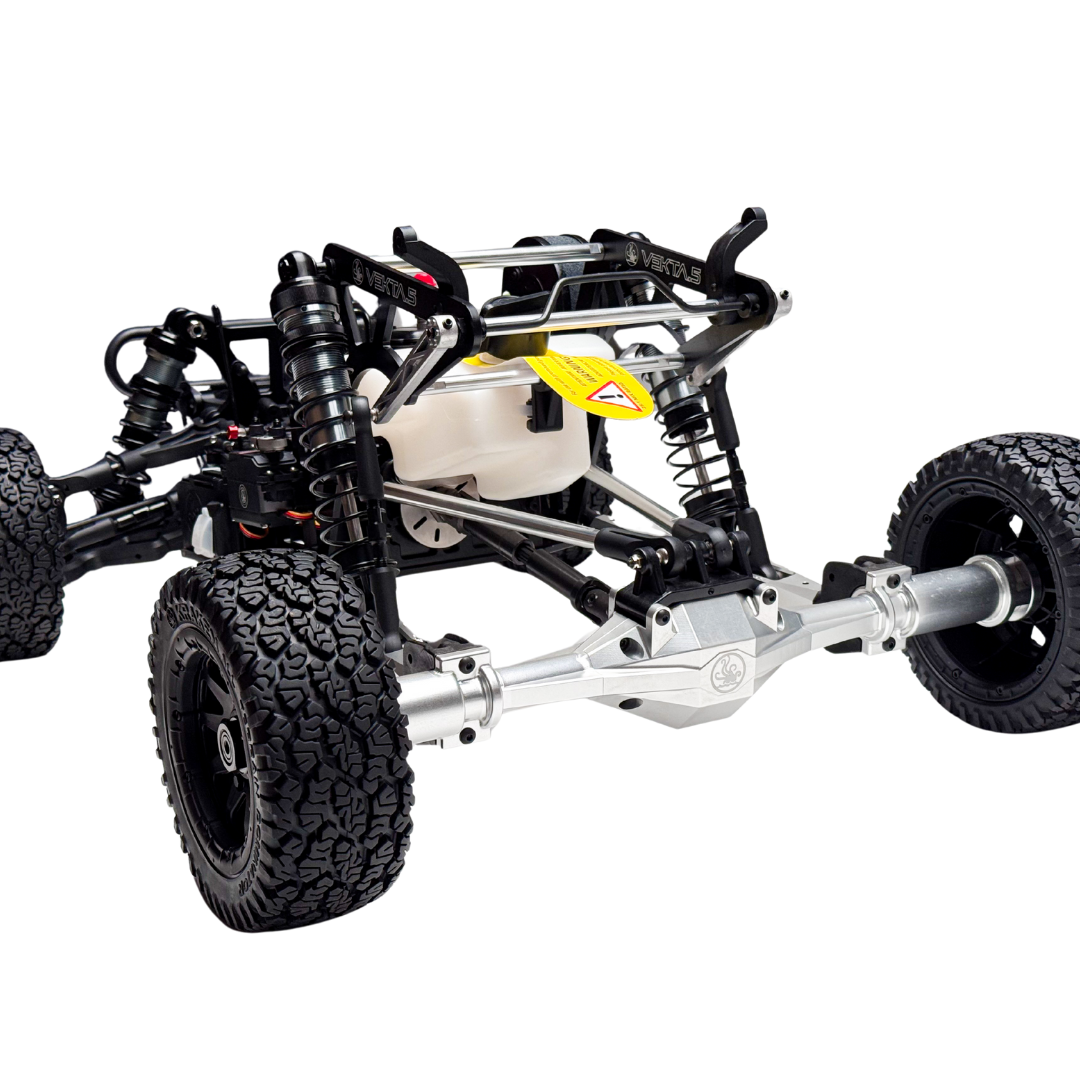

The rear section is a 4 link triangulation design with 2 oversized upper links bars that help center the monster Rear Solid Axle. The Rear Trailing Arms are fully adjustable in height. The Rear Solid Axle and Trailing Arms are all CNC precision machined and are virtually indestructible. New beginning in 2024 is our V3 F9 inspired rear axle housing. This design is sleek with improved clearance from the terrain. New one piece axle shafts are lighter weight and simpler in design to increase strength. Paddle style ends at the differential make this setup rely less on pins and increase strength.
An all metal differential unit is housed in the Rear Solid Axle and is enclosed with a CNC aluminum housing plate. The Universal Rear Drive Shaft design is of a telescoping style with U-Joints, similar to the 1:1 off road trucks. Splined Joint design enables you to detach the Rear Solid Axle quickly from the main chassis by simply removing 5 screws. Just like what we have set out to do from the beginning, we want wrenching to be fun and easy.
Two 5mm vertical aluminum plates uphold our MEGA SHOCKS. To put things into perspective, these shocks are a little shy of 12 inches in length (approx 300mm). They are BIG and BEEFY! The rear section is designed much like a roll cage; trussed with 5 - 10mm aluminum bars and it houses the fuel tank. Rear torsion levers and 4.5 mm sway bar finishes off the design of the rear.
The Best of Rest
A massive one piece heavy duty roll cage encapsulates and protects the chassis and it’s internals. It is a one piece scale design and can be easily detached by removing 4 bolts and a pin. The KV5 ARTR is equipped with KRAKEN ATDs - “All Terrain Dominator”. These are aggressive, heavily threaded, multi-compound tires designed for long term wear and heavy duty bashing. They also provide great grip in any driving conditions. Wheel hexes are of the standard 24mm hex. After-Market wheel and tire options are bountiful should you decide to modify your rig at anytime.
These are just some of the highlights of the KV5. It would be impossible for us to list them all. The best way to experience “THE BEAST” is to pick one up for yourself!
