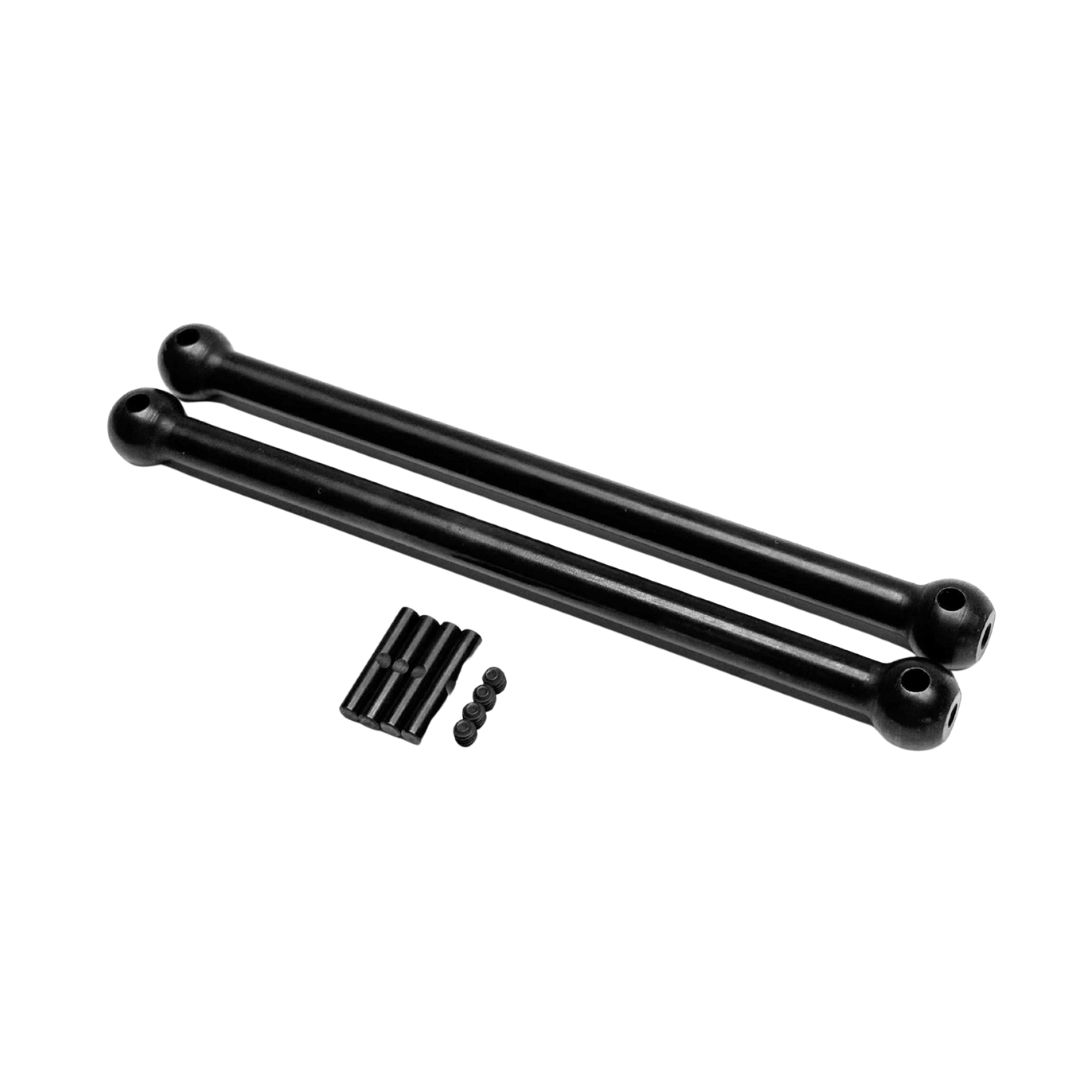

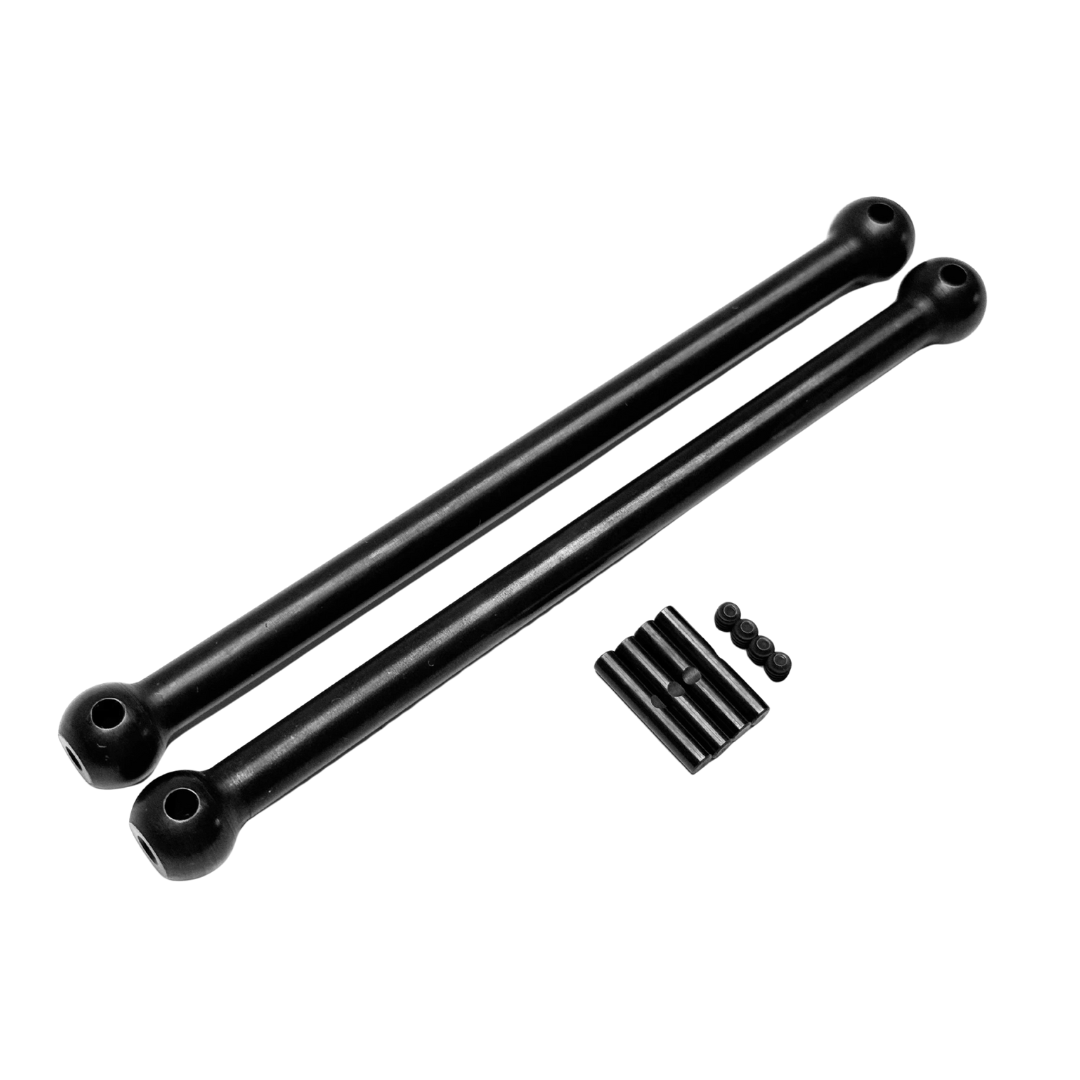

HD Extended Dogbones kit for X2E A-Arms for HPI Baja [KRC90001]

Kraken RC HD Dogbones kit is specially designed for our X2e (extended) Rear Lower Arms. Made out of hardened steel, they are super tough. At 8.6 mm in diameter, our dogbones are the toughest with unmatched quality, fit and finish. Cross pins are replaceable and are considered as wear and tear components. Works with stock 22mm HPI drive cups. High quality grease is highly recommended when running our dogbones kit. Compatible with HPI Bajas that use the 22mm standard sized diff cup (Not the 25mm Super Heavy Duty HPI style cup).

If you have a 2014+ Baja 5B SS or newer SBK those use a 25mm 5SC style diff cup. The X2E kraken dogbones use the 22x4mm pins. you will need the 22x4mm style drive cups OR different extended dogbones with the 5SC size (25x4.5mm)

Features:

• Hardened Steel with Black Oxide. Replaceable cross pins with set screws.

Technical Specs

DogBone:

• Length - 161 mm (Extended)
• Material - SCM435
• Hardness - HRC54
• Color - Black Oxide

Cross Pin:

• Size: 4x22mm
• Material: SUJ2
• Hardness: HRC65
• Color - Black Oxide
